●AUTOMATIC SCREWDRIVING MACHINE

Auto screwdriving robot with intelligent detect function for screw missing, floating screw and stripped screw.

  • Easy program editing with Human Machine Interface.
  • Optical ruler with coordinate position report function.
  • Electric screwdriver with torque detects and warning functions.
  • Screw Size from 1.0mm to 3.0mm ; professional on small size screws
For more examples, please click here Practical application example

Operating procedures

Vision Alignment System

Parameter Setting

Program Editing

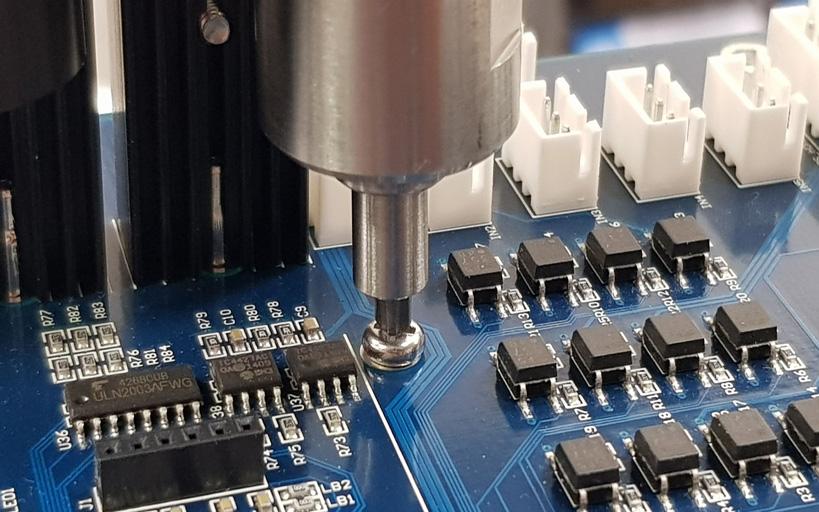

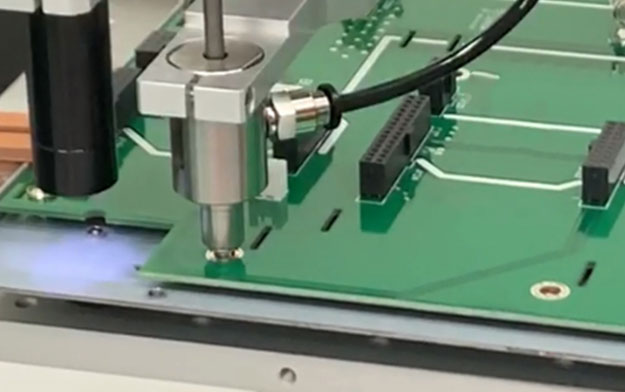

Automate Screw Fasten

Accessory

Screw feeder

Electric screwdriver

Vision Alignment System

SF25L
Moving Area X/Y/Z (mm) 480 / 480/100 mm
Moving Speed X&Y/Z (mm/sec) XY/Z: 600/600 mm/sec
Data Memory Capacity 9999 points/prog. 100 programs
Display Mode Human-machine interface
Electric Screwdriver Brushless DC voltage
Nozzle Specification <9mm (maximum diameter)
Screw Feeder System disc type M1.0~M3.0mm (1.0/1.2/1.4/1.7/2.0/2.3/2.6/3.0)
Working Temp. 10-40°C
Machine Size WxDxH 940 x 752 x 868 mm
Working Area X/Y (mm) 450 / 480 mm
Repeatability +/- 0.01 mm/ Axis
Data Storage Method USB/SD card
Teaching Mode Touch screen human-machine interface
Input Power 100V~230V / 450W
Screw Length <18mm (maximum diameter)
Working Pressure 5~7 kg/cm² dry air source
Working Humidity 20-85% no condensation
Machine Weight 68 kg
