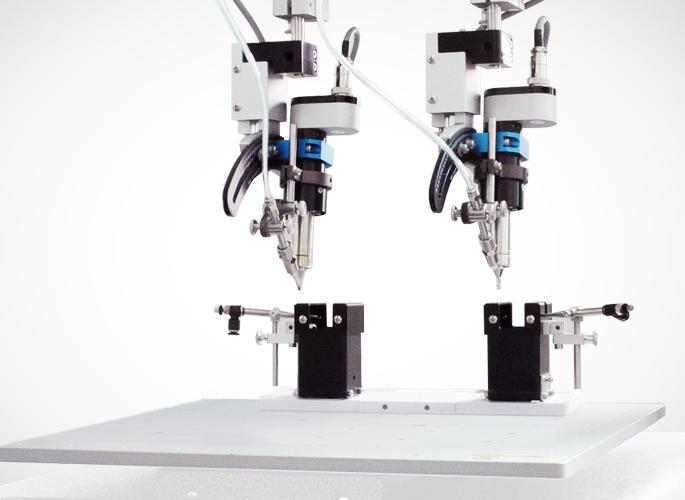

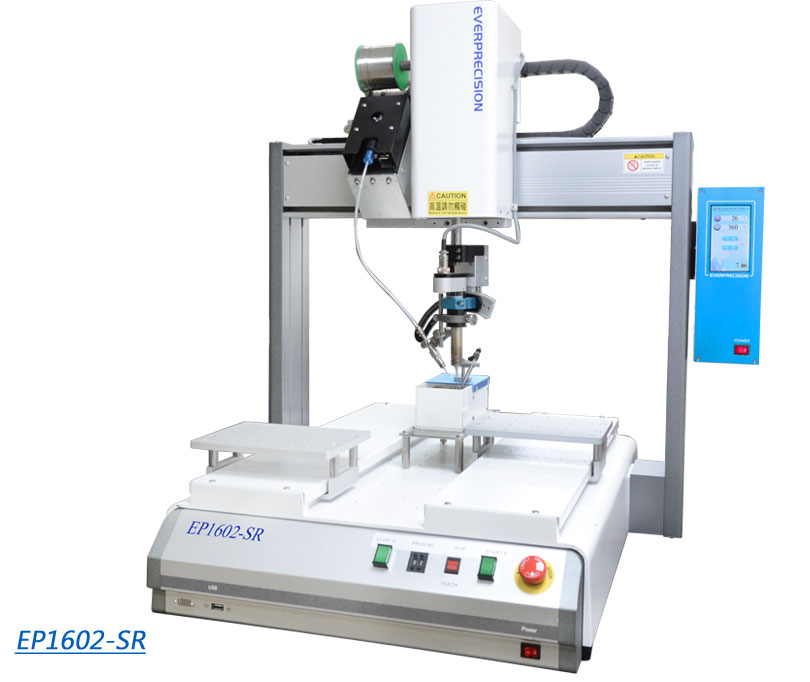

●STANDARD SERIES TWIN STATIONS SOLDERING ROBOT

Function & Features(Manufacturer)

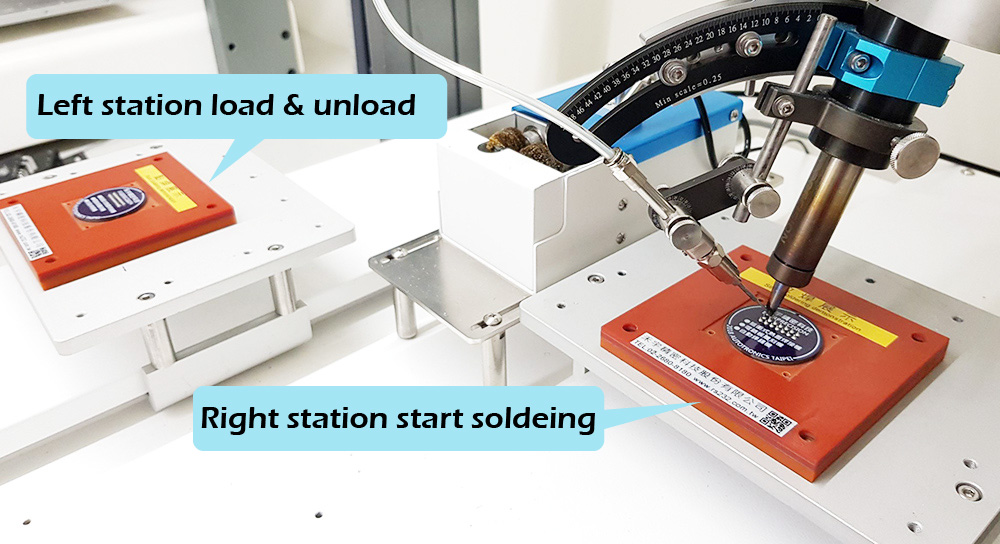

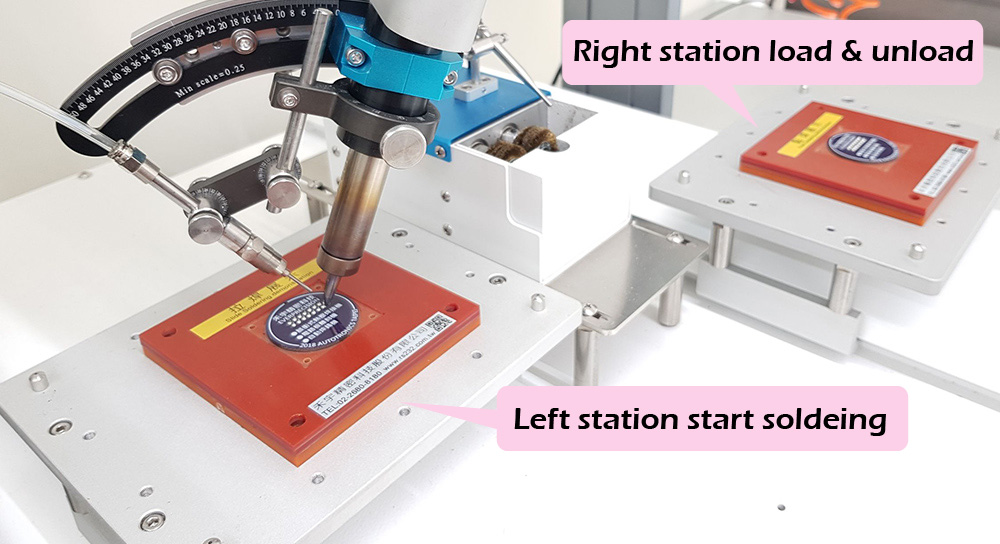

  • Product Fixtures Switching/Increasing UPH Nonstop Manufacturing/ Two Switching Tables .

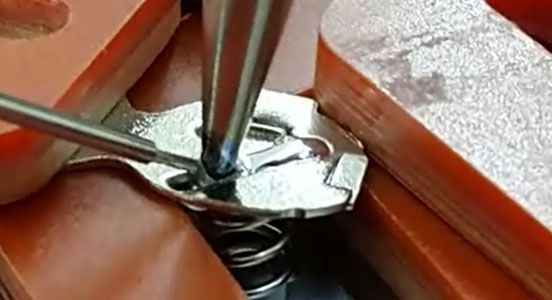

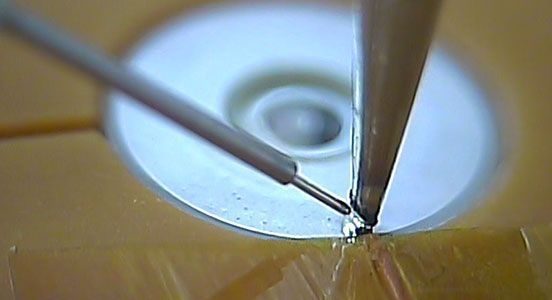

  • Suppor t Point & Slide Soldering.
  • Apply To Multiple Products .
  • Support USB Transferring, UP/DOWN/Update Software.
  • RoHs Manufacture/No Pollution.

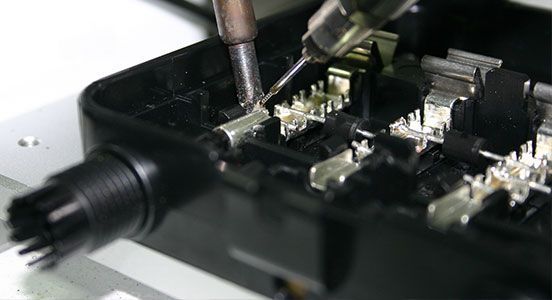

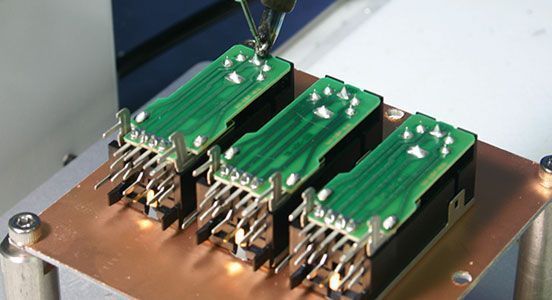

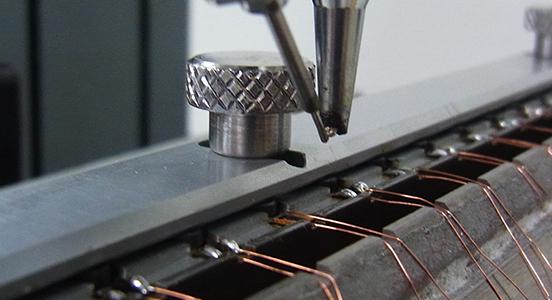

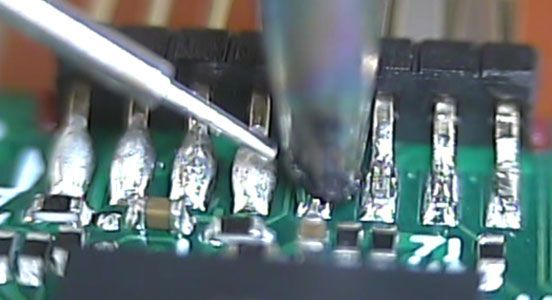

For more examples, please click here Practical application example

Customer Service

Full Training Courses

Professional Fixtures Experience.

Graphic and Drawing Instructions-SMD

Graphic and Drawing Instructions-DIP

Accessory

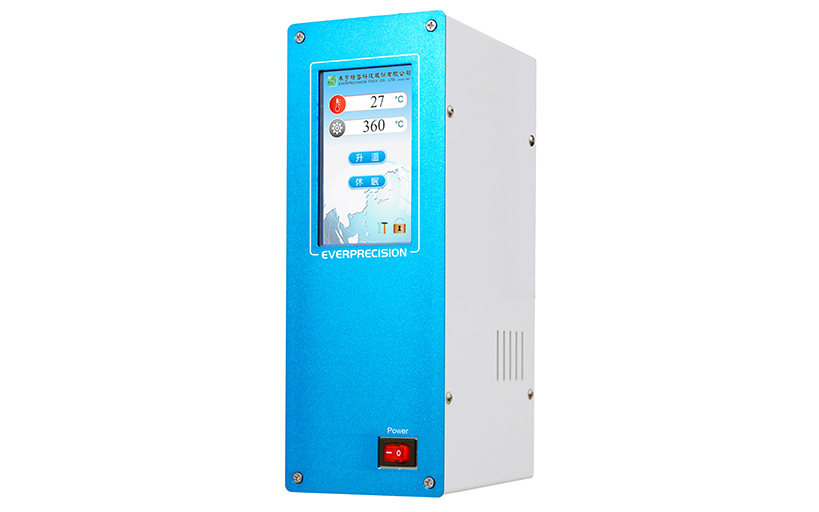

Temp. Control System

Teach Pendant

Clean System

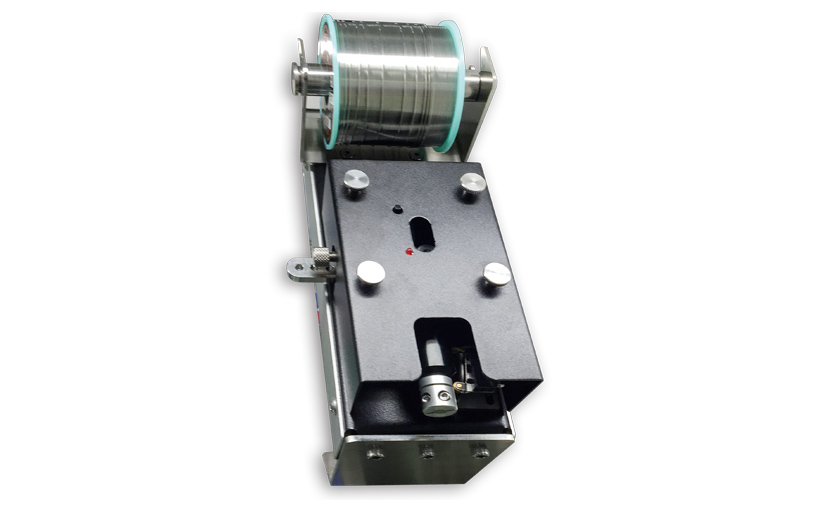

Solder Feeder

Wire Controller

Alarm Feeder System (Optional)

Nitrogen Generator (Optional)

CCD Witness System(Optional)

Soldering Tip (Optional)

Moving Area (X/Y/Z/R) 620 / 500/100 mm /±360°
Max. Speed XY/Z:400 / 250 mm/sec R:720°/sec
Data Memory capacity 9999 points/prog. 100 programs
Display Teach Pendant LCD
Teaching Method Teach Pendant
Temp.Control Power 150 W (Optional:200W ; 280W )
Solder Feeder System Stepping Motor
Air Pressure 5~7 kg/cm²
Working Temp. 10-40°C
Dimensions WxDxH 1011 x 722 x 861 mm
Working Area(X/Y) 500(X1 :250, X2:250) / 500 mm
Repeatability +/- 0.01 mm/ Axis
Program System CF Card / USB
Drive System/ Stepping Motor Micro Stepping Motor
Max.Temperature Max. 460°C
Solder Wire Diameters ø 0.4 ~ 1.2 mm
Clean System Air/Brush
Power Supply 100V~230V/450W
Working Humidity 20-85% no condensation
Weight 73 kg
