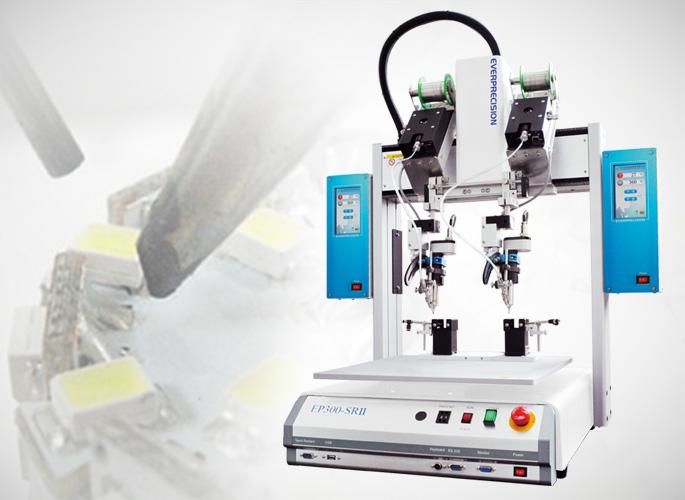

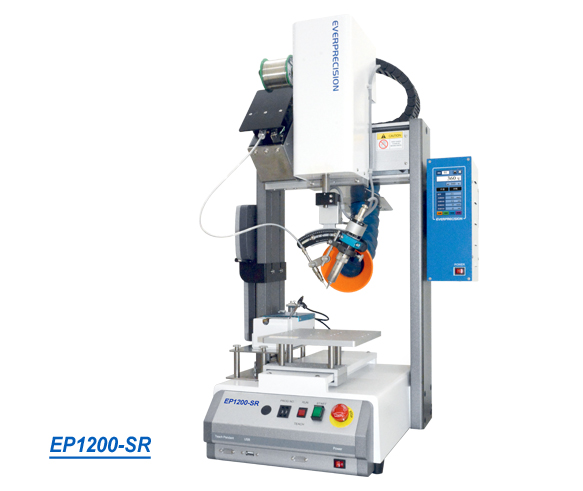

●STANDARD SERIES SOLDERING ROBOT

Function & Features

  • Software/Hardware Developed In Taiwan, Provide Best Quality&Service.
  • High Rigidity Machine Base/Linear Guideway.
  • Change Producing Process, Quality Control Improve.
  • Support USB Transferring, UP/DOWNLOAD/Update Software.
  • RoHs Manufacture/No Pollution.
For more examples, please click here Practical application example

Customer Service

Full Training Courses

Professional Fixtures Experience.

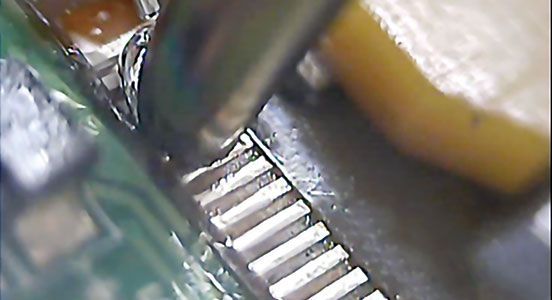

Graphic and Drawing Instructions-SMD

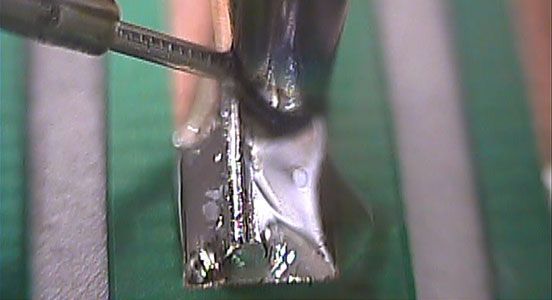

Graphic and Drawing Instructions-DIP

Accessory

Temp. Control System

Teach Pendant

Clean System

Solder Feeder

Wire Controller

Alarm Feeder System (Optional)

Nitrogen Generator (Optional)

CCD Witness System(Optional)

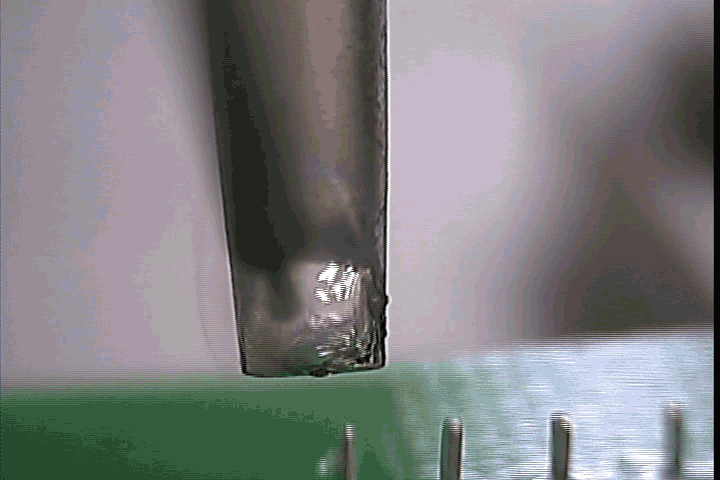

Soldering Tip (Optional)

Moving Area (X/Y/Z/R) 200 / 200 / 100 mm / ±360°
Max. Speed XY/Z:400 / 250 mm/sec R : 720°/sec
Data Memory capacity 9999 points/prog. 100 programs
Display Teach Pendant LCD
Teaching Method Teach Pendant
Temp.Control Power 150 W (Optional:200W ; 280W )
Solder Feeder System Stepping Motor
Air Pressure 5~7 kg/cm²
Working Temp. 10-40°C
Dimensions WxDxH 586 x 445 x 851 mm
Working Area(X/Y) 150 / 200mm
Repeatability +/- 0.01 mm/ Axis
Program System CF Card / USB
Drive System/ Stepping Motor Micro Stepping Motor
Max.Temperature Max. 460°C
Solder Wire Diameters ø 0.4 ~ 1.2 mm
Clean System Air/Brush
Power Supply 100V~230V/450W
Working Humidity 20-85% no condensation
Weight 37 kg
