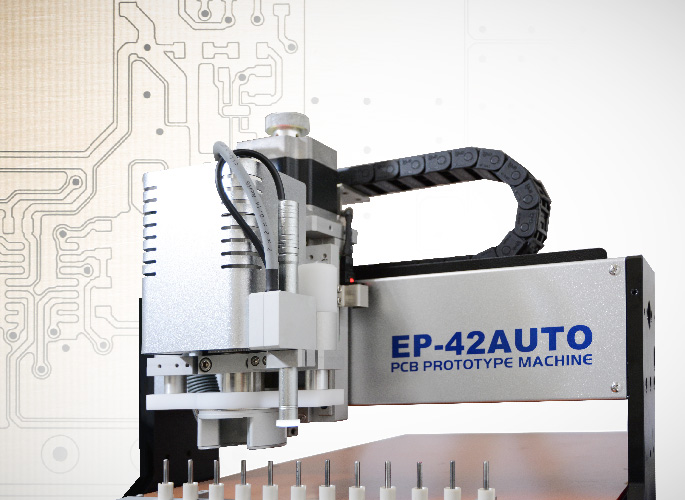

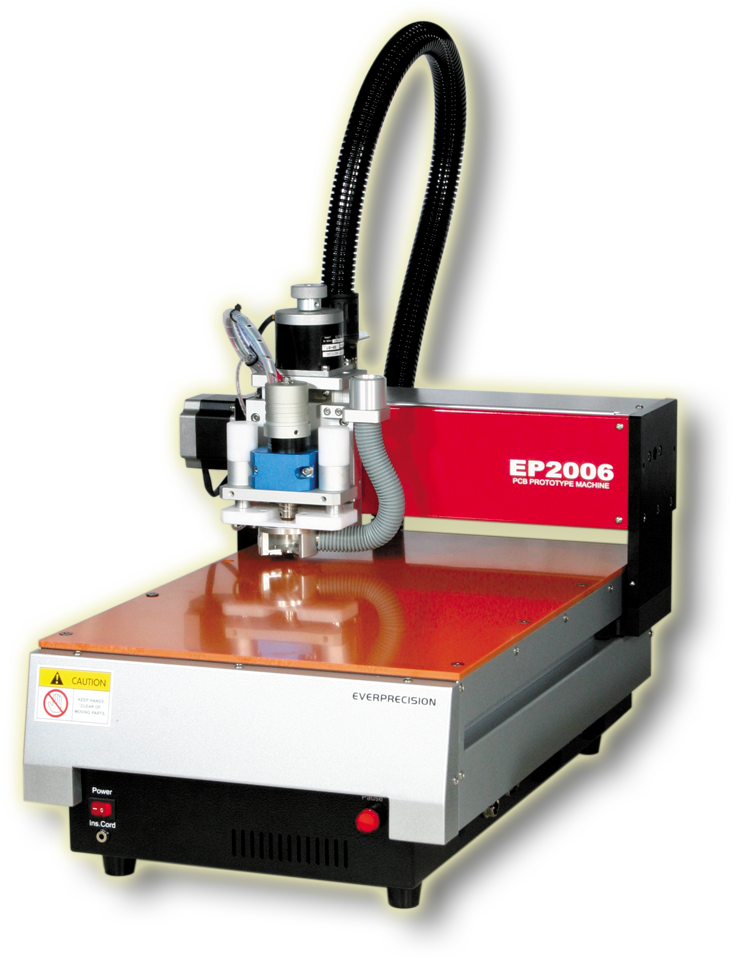

●PCB PROTOTYPING MACHINE

DRILL / ENGRAVE / ROUTE

  • Apply to : RF / Microwave / High Frequency / Digital / Analogy / Manufacture Fixtures.
  • Double and single sided circuit board prototype.
  • Motorized Z-axis with AI control monitors by PC.
  • Easy operation with vision align system.
  • Support GERBER and DXF format.
  • Patent Automatic Tool Height Detect and Surface Detect.
  • High Confidentiality & Shorten Developing Time
  • No Pollution & Environment- Friendly Production
For more examples, please click here Practical application example

PCAM Software

PCAM is compatible with all windows system and accepts standard RS274D/X format GERBER files exported from layout software like: PROTEL / ALTIUM DESIGNER / P-CAD / ALLEGRO / POWER PCB (PADS) / ORCAD, etc.

Import Gerber Files

Routing Setup

Calculating Engraving Path

Engraving Setup

PROCESS OF PROTOTYPING

1. PCB Drilling

Machine will do drilling each hole size by your demand.

2. T1

60 or 90 degree engraves tool isolates pads or trace

3. T2

Milling tool makes wider trace and removes copper.

4. T3

Milling tool removes big area copper.

5. PCB Routing

Cutting outline of the PCB.

Working Area 230x320 mm
Axes X.Y.Z
MAX. Travel Speed 60 mm/sec
MAX. Working Speed 30 mm/sec
Drilling Performance 120 Stroke/min
Tool Holder 1/8" Socket
Surface Detect Auto Surface Detect
Weight 58 Kg
Power Consumption AC 110~220 V
Resolution (X/Y) 0.5 µm
Control Motor X.Y.Z / Stepping Motor
MIN. Trace Width 4 mil
Drilling 0.2~3.175 mm
Tool Change Semi Auto
Tool Length Detect Auto Tool Length Detect
Spindle Speed 5,000~42,000 rpm (Software Control)
Dimension W735xD500xH497 mm
